Experience unparalleled illumination versatility with our advanced Round Braided Neon Strip Light, engineered for professional-grade lighting solutions. Featuring a 360-degree beam angle and cutting-edge pixel control technology, this product redefines precision lighting in architectural, commercial, and creative applications.
Optical Design:
360° uniform beam dispersion ensures seamless omni-directional lighting without dark spots.

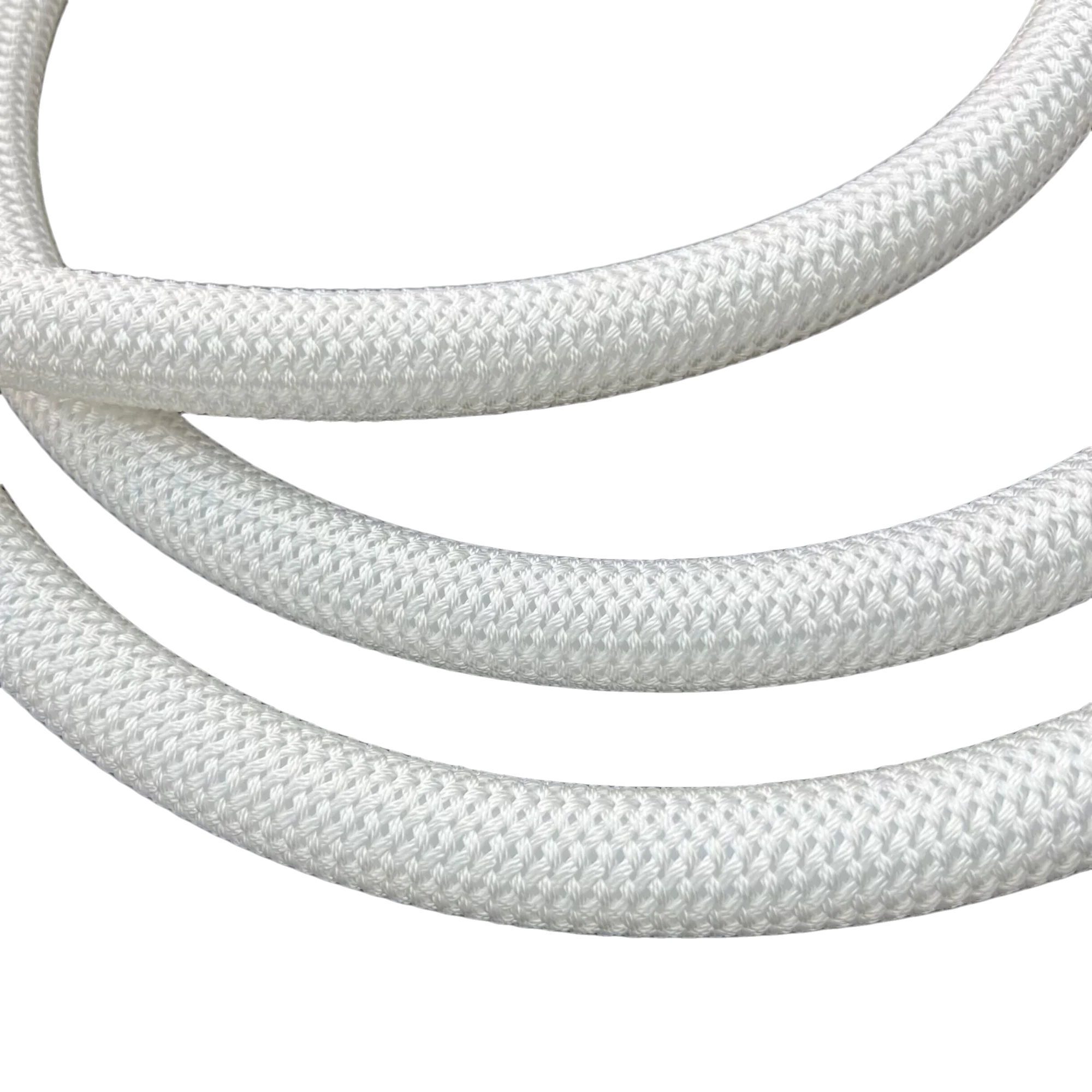

Round braided silicone jacket provides IP65 waterproofing while diffusing light evenly.
LED Configuration:
Dual-density options:
60 LEDs/m (balanced brightness) or 96 LEDs/m (high-resolution effects).WS2811/WS2815 IC chips enable individual pixel addressing for dynamic RGB color transitions.
Electrical Compatibility:
Wide voltage range: **DC 12V/24 support for flexible power system integration.Low-voltage operation enhances safety and energy efficiency (consumption:
≤18W/m @24V).Certification Note:
CE/RoHS compliant. Includes 3-year warranty against manufacturing defects.Optimize your lighting projects with professional-grade technology—[Order Samples] or [Request CAD Files] today.
22mm Diameter 60/96LEDs/m DC12V/24V WS2811/WS2815 RGB Full Color LED Pixel Round Braided Neon Strip Light 360 degree Beam Angle
Input voltage:.............. DC12V or DC24V
Power:........................ 0.24W/LED
LED resource:............. 5050/3535 SMD RGB
Q'ty of LED and Pixels: 12V 60 Pixels 120LEDs per Meter: Addressable,one LED as one Pixel;double sided PCBA inside
24V 60 Pixels 120LEDs per Meter: Addressable,one LED as one Pixel;double sided PCBA inside
12V 32 Pixels 192LEDs per Meter: 3 LEDs as one Pixel;double sided PCBA inside
24V 14 Pixels 168LEDs per Meter: 6 LEDs as one Pixel;double sided PCBA inside
IC Type: ..................... WS2811 IC/WS2812B/SK6812
Grey scale: 256;
Bits/color: 8-bits/color;24bit for RGB

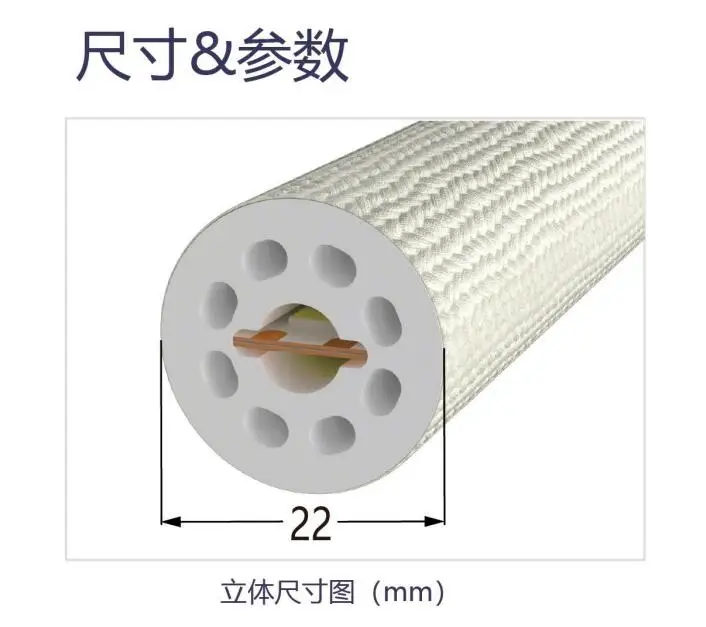

neon size:..................... 22mm diameter

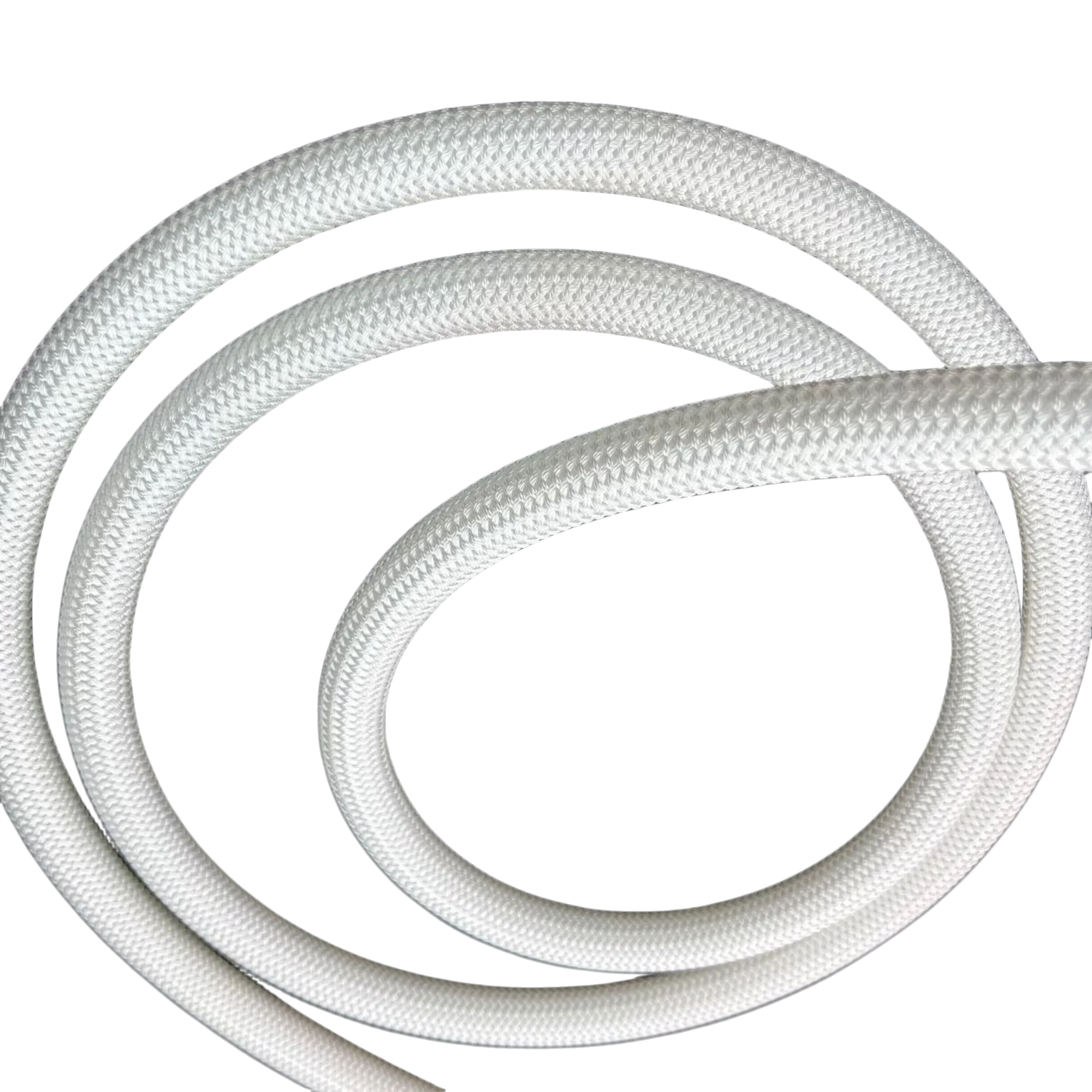

neon material:.............. 100% silicon;very soft,with Braided on the surface
beam angle:................. 360 degree
Protection rate.............. waterproof in frosted silicon tube

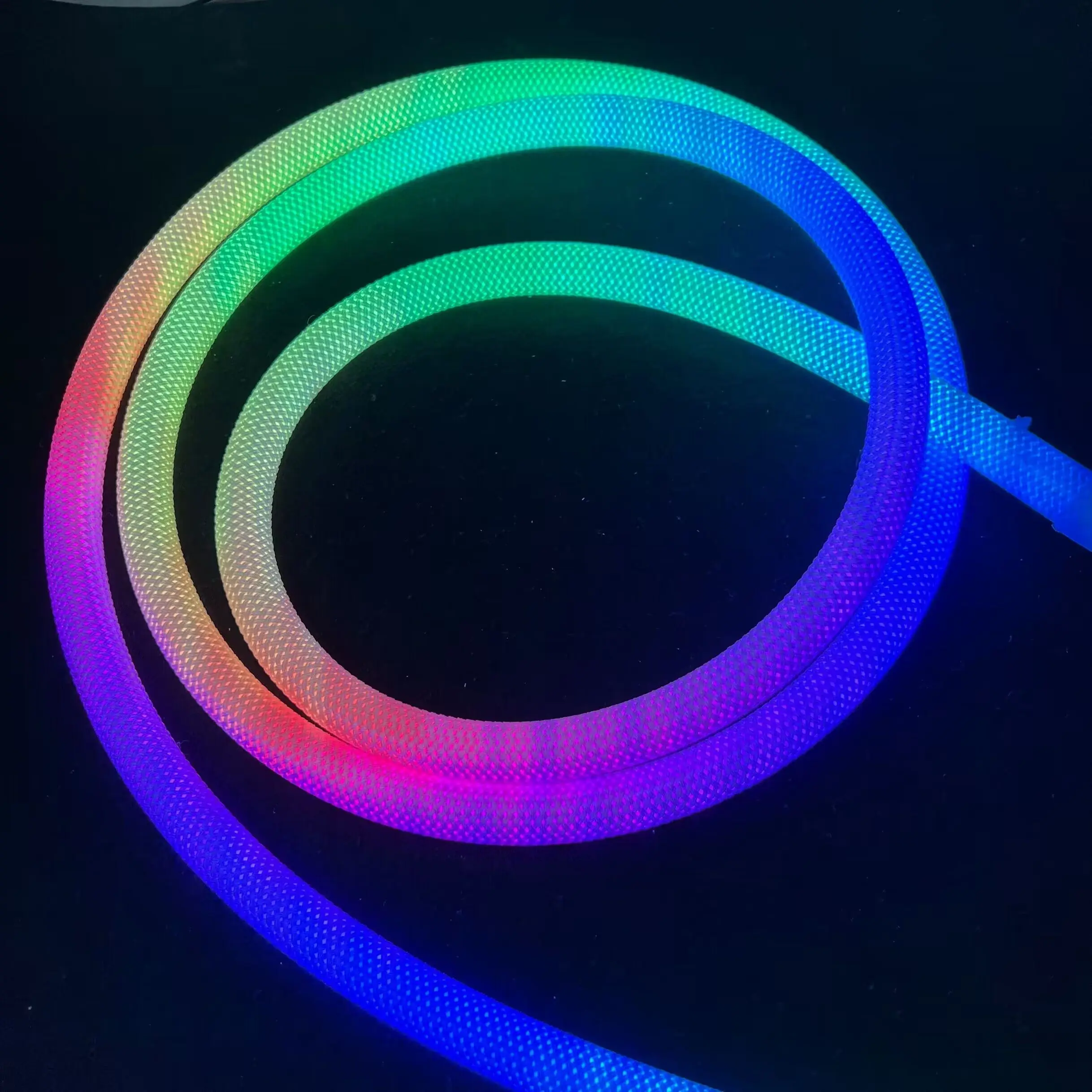

Colors:........................ Full color RGB, dream color changing;

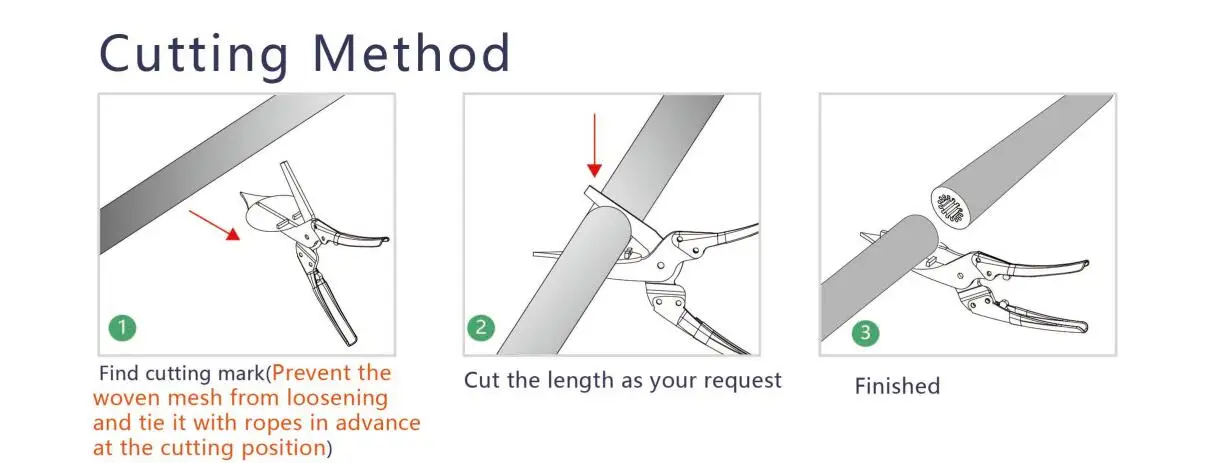

Cuttable:...................... every one pixel is cuttable;
Package:..................... 3/4/5 meters/reel in anti-static bag
Product options( pixel strip PCBA inside the neon tube):
12V 60 Pixels 120LEDs per Meter: Addressable,one LED as one Pixel,double sided PCBA inside:
24V 60 Pixels 120LEDs per Meter: Addressable,one LED as one Pixel,double sided PCBA inside:
12V 32 Pixels 192LEDs per Meter: 3 LEDs as one Pixel,double sided PCBA inside:
24V 14 Pixels 168LEDs per Meter: 6 LEDs as one Pixel,double sided PCBA inside:

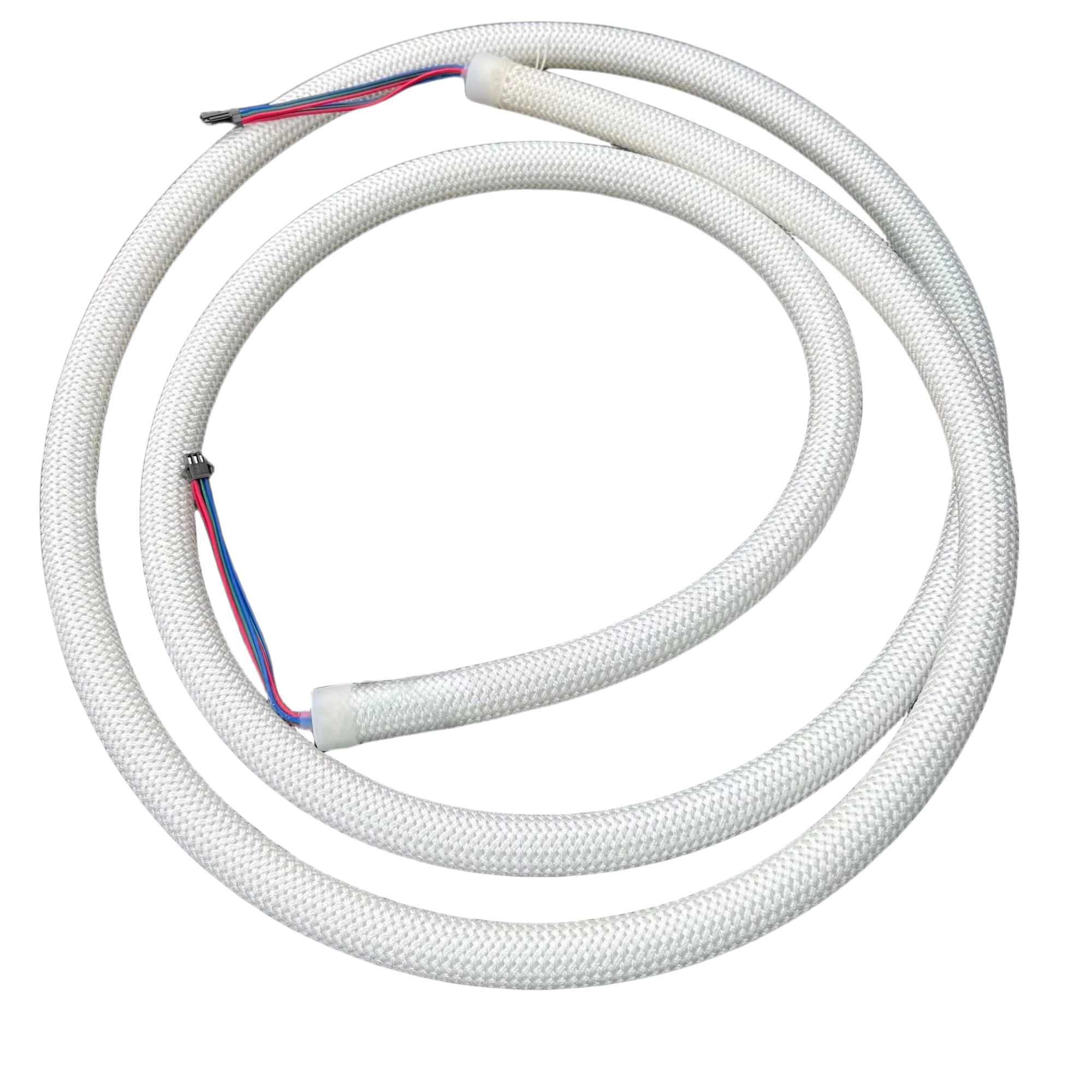

3Pin JST SM connectors:
input end: 0.2m long male connector with black flat wire
output end: 0.2m long female connector with black flat wire
standard pinout diagram for our pixel lights:
for pigtails:
Brown:- 5/12v +
Yellow: data
Blue: GND
Input end: male connector(screw end with bare pin)
Output end: female connector(with hole)

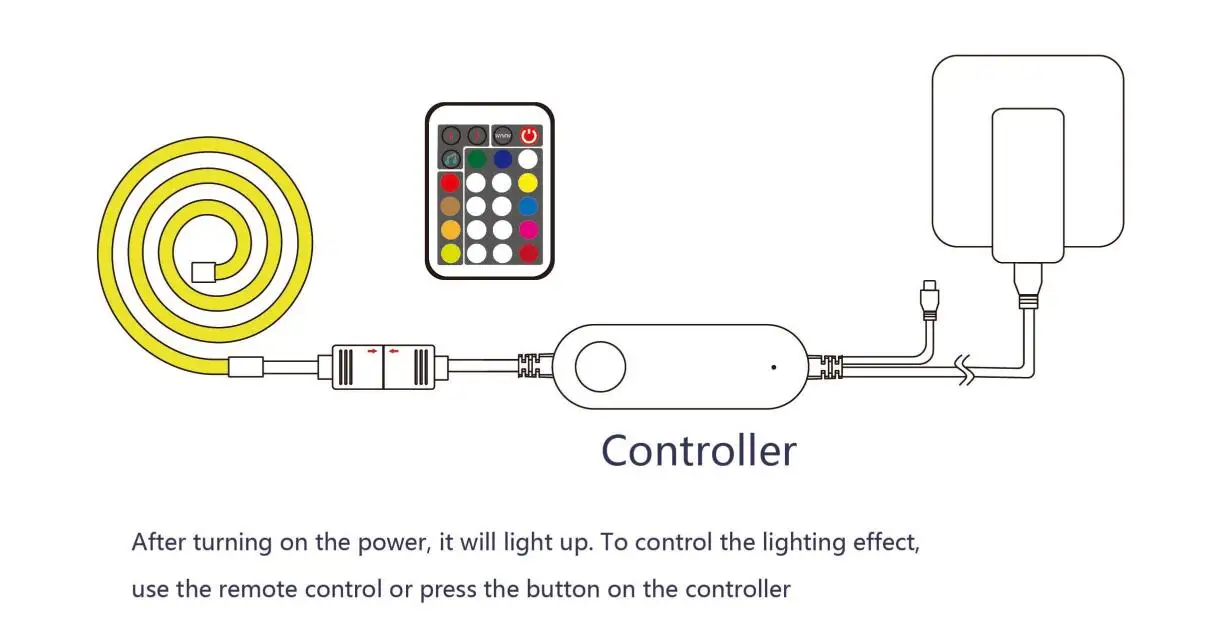

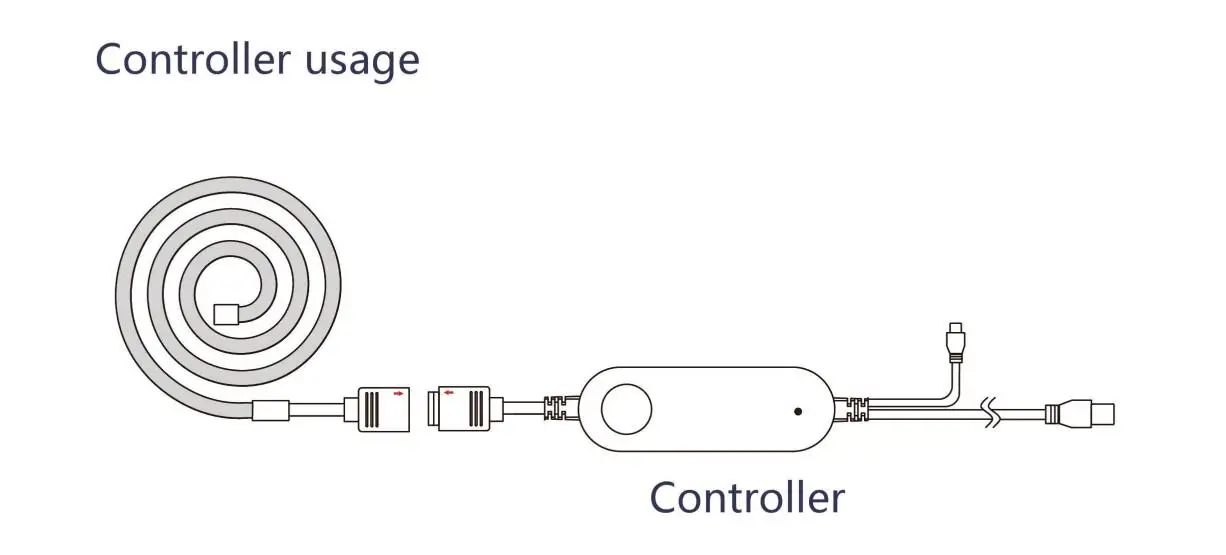

Recommended Controllers:
