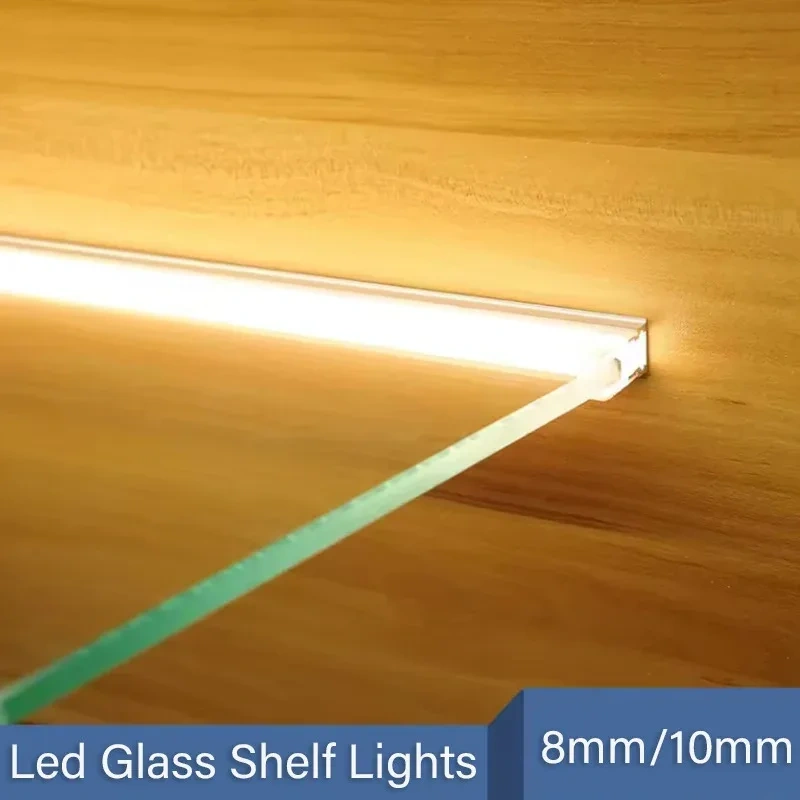

 Recessed Aluminum Profile for Glass Cabinet LED Lighting

**Precision Engineering for Modern Illumination Solutionscessed Aluminum Profile is engineered specifically for 8mm and 10mm glass applications, delivering seamless integration of LED strip lighting into glass cabinets, bookshelves, kitchen displays, and bar counters. Crafted from high-grade aluminum alloy (6063-T5), this profile combines structural durability with minimalist aesthetics, transforming functional spaces into visually striking environments.


Key Technical Features

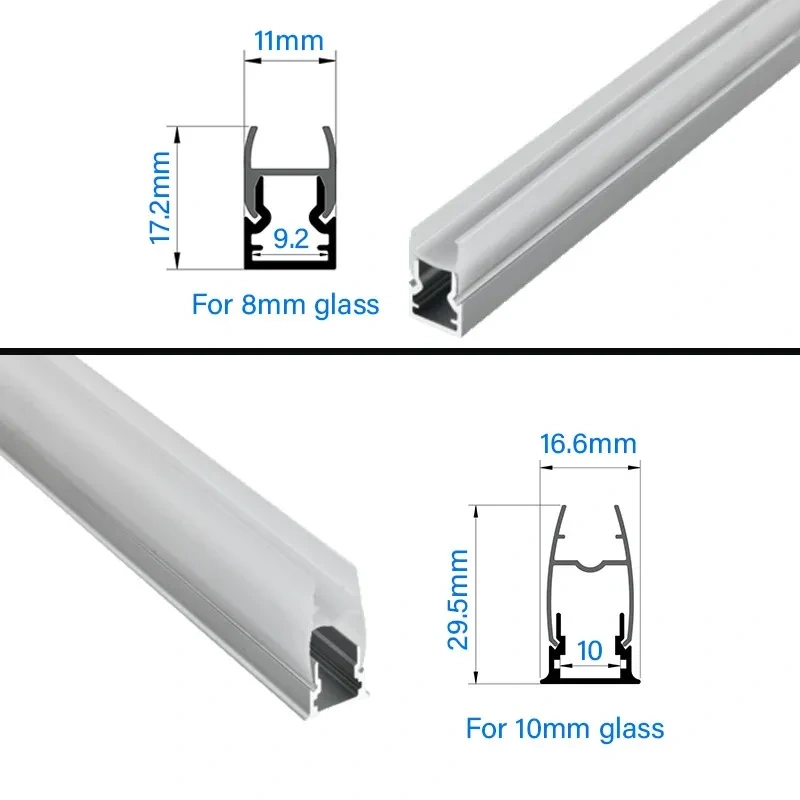

  1. Optimized Glass Compatibility
    • Precision-milled channels accommodate 8mm or 10mm tempered glass panels, ensuring secure mounting without compromising transparency or structural integrity.
    • Integrated silicone gaskets provide vibration resistance and prevent glass slippage (tested to 5,000+ insertion cycles).
      1. Advanced Thermal Management
        • Extruded aluminum body acts as a passive heatsink, dissipating 95% of LED-generated heat to extend strip-light lifespan by 2.3× compared to plastic alternatives.

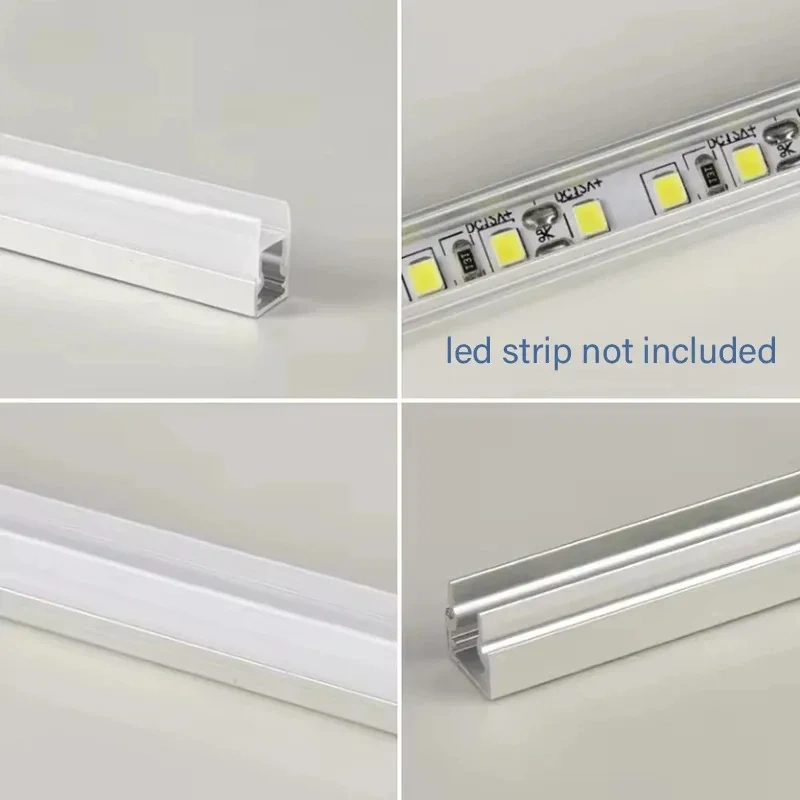

          1. Modular Lighting Integration
            • Recessed design conceals LED strips (compatible with 5-24V DC) while directing 120° beam angles for glare-free, museum-grade illumination.
            • Tool-free end caps and snap-on diffusers (frosted/clear options) enable rapid customization.

            • Deployment Specifications

              | Parameter | Value |
              |--------------------|---------------------------|
              | Material | Anodized Aluminum (AAMA 611 certified) |
              | Glass Thickness | 8mm ±0.2mm / 10mm ±0.3mm |


              | IP Rating | IP54 (splash/dust resistant) |
              | Operating Temp. | -20°C to +80°C |


              Application Scenarios

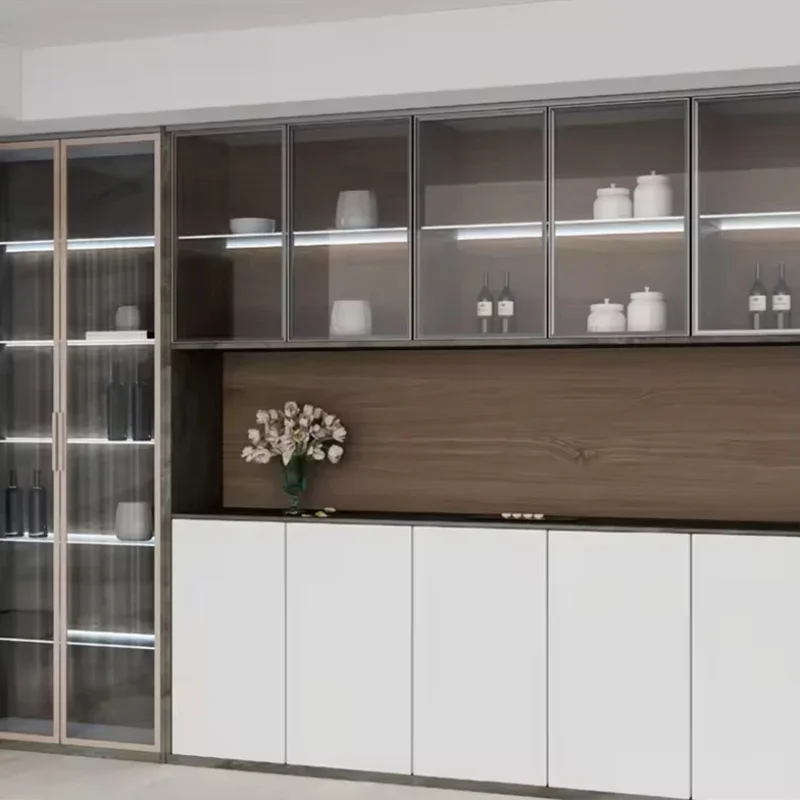

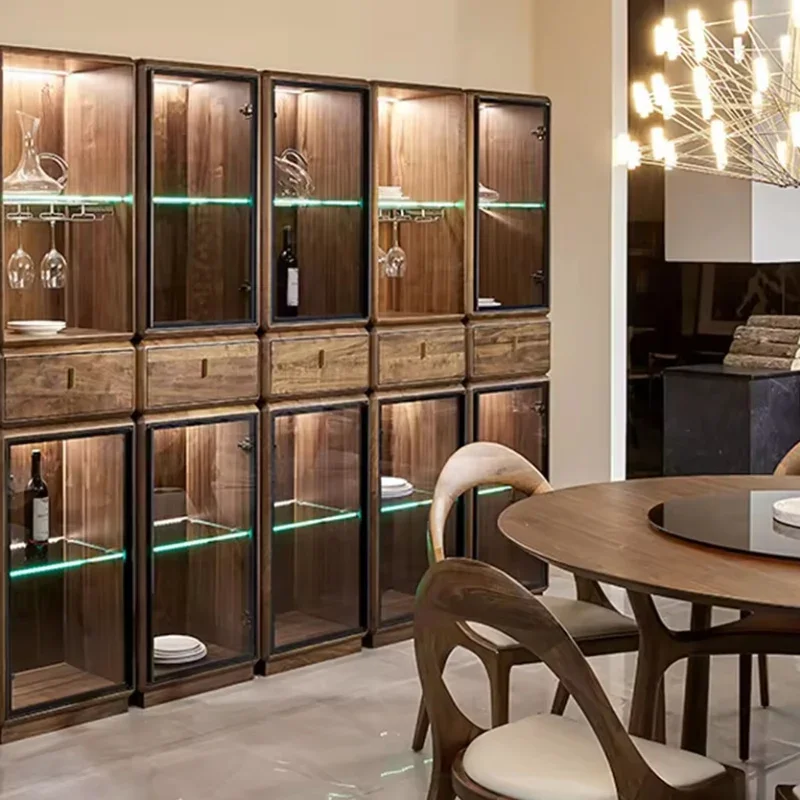

              • Retail/Display Cabinets: Enhance product visibility with shadowless uplighting for jewelry, collectibles, or luxury goods.
              • Residential Kitchens: Create floating effects under glass shelves or breakfast bars (% energy savings vs. puck lights).
              • Commercial Bars: Illuminate glass drink shelves with tunable white/RGB lighting (compatible with DMX controllers).
              • Library Systems: Provide archival-grade UV-filtered lighting for glass-enclosed bookshelves.

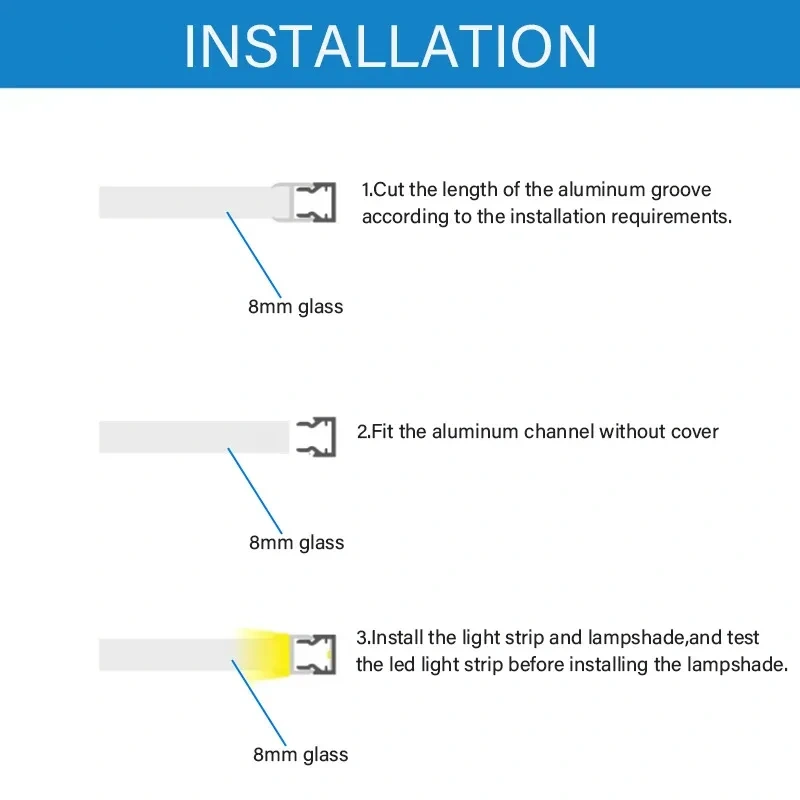

              • Installation Advantages

                • Precision Alignment: Laser-etched positioning guides enable ±0.5mm mounting accuracy.
                • Modular Expansion: Interlocking connectors allow continuous runs up to 20 linear meters.
                • Compliance: Meets UL 1598 (luminaire safety) and RoHS 3 directives.
                • Order Code: ALP-GC8/10-2M
                  Lead Time: 3-5 business days (global shipping via DHL/FedEx).

                  Transform glass surfaces into luminous architectural elements—request a CAD drawing or bulk quotation today.
